There are three main types of drilling pipe - regular drill pipe, heavyweight drill pipe (HWDP), and drill collars. Each serves a specific role in the drill string. After inspection, drill pipe is graded N-class (new), P-class (premium), or C-class, which determines what operations it can be used for. |
Drill pipes are the backbone of any drilling operation, connecting the surface to the depths where all the action happens. Choosing the right drill pipe is one of the most important decisions in any project, whether you're working on offshore platforms or onshore rigs. Below, we break down the main types of drill pipes, their applications, and what to look for when selecting pipe for your next project.
- What is a Drill Pipe?
- What is Drill Pipe Used For?
- Types of Drilling Pipe
- Drilling Pipe Classifications
- The Importance of Drill Pipe Maintenance
- Keystone Energy Tools: Your Leader in Drill Pipe Repair and Maintenance
What is a Drill Pipe?

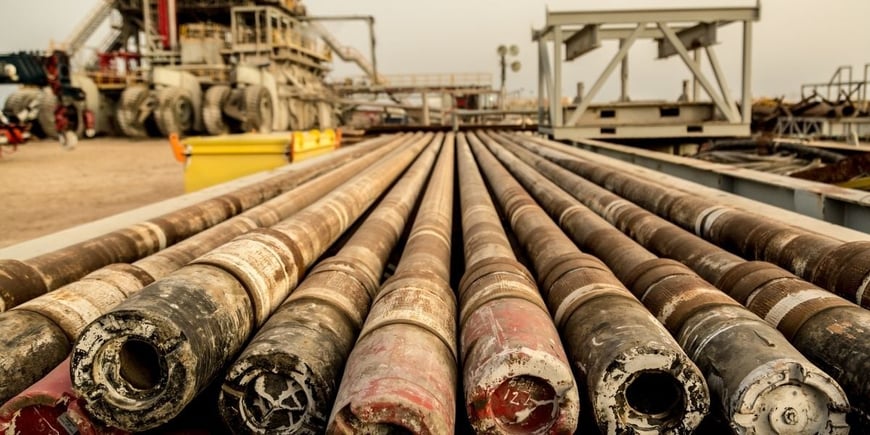

A drill pipe is a robust, hollow steel tube that plays a crucial role in the oil and gas drilling process. It does the heavy lifting by rotating the drill bit to break through rock formations and circulating drilling fluid to cool the bit and carry cuttings back to the surface. Plus, drill pipes are the highway for deploying downhole tools, making them indispensable in the drilling system.
Designed to withstand the tough conditions on drilling rigs, drill pipes handle extreme pressures, both external and internal, torsional stress from rotation, and bending stress. Made from tempered steel, these pipes are built tough to tackle the demanding tasks they face in oil and gas extraction.
What is Drill Pipe Used For?
Drill pipe serves three core functions: transmitting torque to rotate the drill bit, applying weight on bit (WOB) through the drill string, and circulating drilling fluid to cool the bit and remove cuttings.
Drill pipes aren't just about transferring drilling fluid and rotating the drill bit; they are key to the structural integrity of the drill string. They manage the mechanical stresses involved in drilling, transmitting torque and weight on bit (WOB) from the rig to the drill bit. This helps the bit advance through various geological formations effectively.
Additionally, drill pipes act as conduits for various downhole tools essential for complex drilling tasks like directional drilling, logging while drilling (LWD), and measurement while drilling (MWD). These tools depend on the support and fluid pathways provided by the drill pipe to operate effectively and allow for real-time adjustments and data collection during the drilling process.
Types of Drilling Pipe
The three main types of drilling pipe are regular drill pipe, heavyweight drill pipe (HWDP), and drill collars. Each plays a distinct role in the drill string. Let's take a closer look at each to help you optimize your drilling operations.

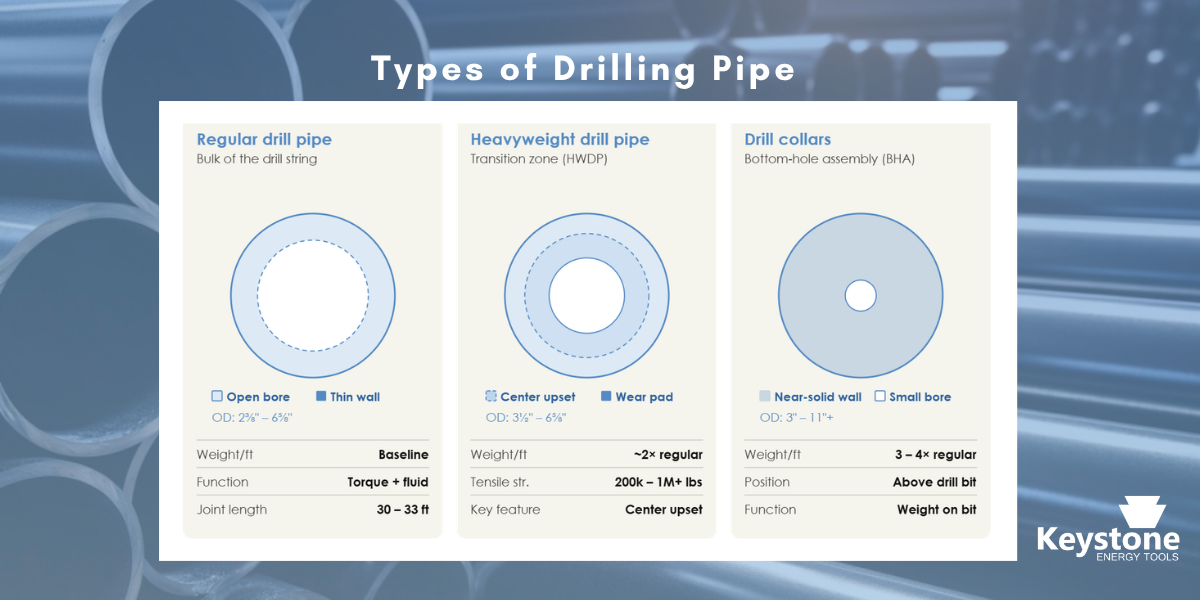

The cross-sections above show the physical difference at a glance - regular drill pipe is mostly open bore, HWDP adds a thick center upset ring, and drill collars are nearly solid steel. Those wall thickness differences are what drive every spec that follows. Here's how the three pipe types stack up when you put the numbers next to each other.
| Pipe Type | Primary Function | Outer Diameter Range | Weight vs. Regular Drill Pipe | Key Feature |
|---|---|---|---|---|
| Regular Drill Pipe | Rotate bit, circulate fluid | 2⅜" - 6⅝" | Baseline | Hollow tube with tool joints |
| Heavyweight Drill Pipe (HWDP) | Transition zone / add WOB | 3½" - 6⅝" | ~2x per foot | Center upset (wear pad) |
| Drill Collars | Add weight on bit | 3" - 11"+ | 3-4x per foot | Near-solid thick walls |
Regular Drill Pipe
The drill string refers to the entire column of tools, essentially the drill pipe, shaft collar, tools, and the drill bit itself. Generally, drill pipe used for the drill string is made from tempered steel. For cost and transport reasons, sections of drill pipe rarely exceed ranges of 30 to 33 feet long.
Given the extreme depths involved in drilling (particularly offshore), which can reach almost 15,000 feet, sections are connected with tool joints - one section has a male (pin) connection, which threads into a female (box) connection. Using proper drill pipe stabbing guides during makeup protects these threads from damage.
Note that drill pipes come in different diameters as specified by API. Common sizes include 2⅜", 5", and 6⅝" outer diameter.
Drill pipes in the upper portion of the drill string differ in thickness and construction from heavyweight drill pipe (HWDP), which is used to transition between drill collars and the lighter, thinner drill pipe above.
Heavyweight Drill Pipe (HWDP)
Heavyweight drill pipe is significantly stronger than regular drill pipe - designed to handle the added stresses of serving as a transition between drill collars and regular drill pipe.
HWDP is generally preferred for these transitions because it's more flexible than a solid drill collar connection. That flexibility matters in directional and horizontal wells, where a rigid transition can cause fatigue failures at the pipe body.
HWDP ranges in diameter from 3.5" to 6⅝", weighs nearly twice as much per foot as regular drill pipe, and carries tensile strength ratings from 200,000 lbs. to over 1,000,000 lbs.
One key feature: HWDP typically includes a center upset - a thick wear pad on the outside - that prevents the pipe body from grinding against the borehole wall. Center upsets reduce wear and extend pipe life considerably, which is why they're considered standard on most HWDP.
Drill Collars
Drill collars are thick-walled, heavy steel tubes placed at the bottom of the drill string to add weight on bit (WOB) and maintain directional control. Unlike regular drill pipe, drill collars have near-solid walls - that's what makes them heavy enough to keep consistent pressure on the drill bit without buckling the drill string above.
Drill collars typically range from 3" to 11"+ in outer diameter and weigh 3 to 4 times more per foot than regular drill pipe. They sit directly above the drill bit in the bottom-hole assembly (BHA).
The three common types of drill collars are:
- Slick drill collars: Smooth outer diameter, the most common type for vertical wells
- Spiral drill collars: A helical groove reduces contact area with the borehole wall, lowering the risk of differential sticking in permeable formations
- Non-magnetic drill collars: Used around MWD/LWD tools in the BHA, where magnetic steel would interfere with directional sensor readings
Drilling Pipe Classifications
API Spec 5DP (formerly API Spec 5D) governs drill pipe dimensions, material grades, thread forms, and inspection criteria. Common steel grades include E-75, X-95, G-105, S-135, and higher-strength Z-140 and V-150 used in HPHT applications.
Together, these specifications ensure drill pipe can withstand extreme pressures, temperatures, and mechanical loads while maintaining performance, safety, and reliability across a wide range of drilling environments.
After inspection, drill pipe is graded into three API classes based on condition: N-class (new), P-class (premium), and C-class (used). This classification system helps crews match pipe condition to job requirements and manage the cost of running a drill string.
Drill pipes fall into three main categories based on their condition:
-
N-Class Pipe (New Pipe):
The newest and strongest pipes, in top condition and selected for critical operations where reliability is non-negotiable.
-
P-Class Pipe (Premium Pipe):
These pipes have seen some action but are still in great shape, offering a solid balance between performance and cost.
-
C-Class Pipe:
This includes grades C-1, C-2, and C-3, suitable for less demanding operations or temporary applications where top-tier pipe isn't needed.
When a pipe has given its all and reaches the end of service life, it's marked for scrap - typically identified by red bands. Due to the high cost of drill pipe, it's frequently refurbished and resold under the grades above.
Understanding drill pipe classifications is critical for selecting the right pipe based on condition, performance requirements, and risk tolerance. After inspection using API 5DP and DS-1 standards, drill pipe is graded based on remaining wall thickness, structural integrity, and suitability for specific drilling applications. The table below breaks down each classification to help you quickly identify the right pipe for your operation.
| Grade | Name | Wall Remaining | Condition | Best Application |
|---|---|---|---|---|
| N | New | 100% | Never used; full OEM spec | Critical, high-risk wells |
| P | Premium | ≥ 80% | Used; meets API 5DP premium requirements | Most active drilling programs |
| C-1 | Class 1 | ≥ 70% | Visible wear; structurally sound | Moderate-risk operations |
| C-2 | Class 2 | ≥ 65% | Significant wear; limited service life | Low-risk, shallow wells |
| C-3 | Class 3 | ≥ 55% | Heavy wear; near end of service life | Temporary / non-critical use only |
| Scrap | — | < 55% | End of life; marked with red bands | Retired from service |
Selecting the right drill pipe classification directly impacts safety, performance, and overall drilling cost. Higher-grade pipe (N and P) is typically reserved for demanding, high-risk operations, while C-class pipe can be used strategically in less critical environments to manage costs. Understanding these classifications allows operators to balance risk, extend asset life, and optimize drilling efficiency across the entire drill string.
Drill pipe inspection and classification follow API RP 7G and API Spec 5DP - the governing standards published by the American Petroleum Institute for drill stem design, material grades, and inspection criteria.
The Importance of Drill Pipe Maintenance
Keeping your drill pipes in top shape isn't just a good practice, it's essential. Handling equipment that contacts the pipe, including slips, dies, and inserts, should be in good condition to avoid damaging pipe surfaces during tripping. These pipes face some of the toughest conditions out there, from high pressures and corrosive environments to continuous mechanical stress. Regular inspections and timely repairs are essential to keeping them in working order. Techniques like non-destructive testing (NDT) help spot issues like cracks or corrosion early on, before they lead to bigger problems.
A consistent maintenance schedule is your best defense against unexpected failures. This includes regular cleaning to prevent build-up and careful handling to avoid unnecessary wear. By staying ahead of maintenance, you ensure that your drill pipes continue to perform efficiently, reducing downtime and maintaining safety standards.
Keystone Energy Tools: Your Leader in Drill Pipe Repair and Maintenance
At Keystone Energy Tools, we've worked with drilling contractors across North America for over 50 years and the most common source of avoidable downtime we see is mismatched pipe grade selection or deferred inspection.
We're experts at giving your drilling equipment a new lease on life. Our comprehensive maintenance services make sure your tools meet or exceed OEM specifications, so you can drill with confidence. Remember, a well-maintained drill pipe is the key to efficient, safe, and cost-effective drilling operations.
Keystone Energy Tools is now the first drill pipe float valve manufacturer in the world certified to API Spec 7V, covering all G and F series models in every size. If you spec, source, or run drill pipe float valves, you can now require API Spec 7V certification on your purchase orders and verify it through API's Composite List. Ask your current supplier where they stand on 7V - the answer tells you a lot about what's actually inside the valve body.
If you're looking for a trusted supplier of float valves that can stand up to the rigors of your drilling operations, Keystone has you covered. See our full range of float valves and find out how they can improve your drilling efficiency and safety.
Understanding drill pipe classifications, types, and maintenance can help you make informed decisions that.can help you make better decisions about drill pipe selection, maintenance timing, and cost management. At Keystone, we're here to help you achieve drilling excellence with high-quality equipment and expert services.
